The body calipers are designed with a unique measurement safety feature. The measurement safety is accomplished with one scale and a non-removable slide that prevents errors caused by reading the wrong scale on a dual scale of combination calipers. The slider can be locked at any patient thickness.
The head-neck caliper is useful in measurements of either patient diameters or surface-to-tumor depths. The depth of a tumor or intraoral structure relative to either the lateral or anterior/ posterior surfaces can be easily determined. Vertical adjustment is 23cm, horizontal adjustment is 26cm.

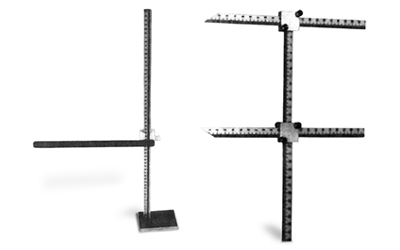

Table Top Caliper
The table top caliper with a 55cm scale can only be used to measure from the table top to the top surface of the patient.
Under/Over Table Body Caliper
The under/over table body caliper with a 55cm scale measures 6.5" from the base plate to the curve blade. The blade is 15.5" long.
Body Caliper with Flat Blade
The lightweight body caliper with a flat blade is used for measuring body parts. The rigid leg that slips under the patient is 1/8" thick and 11" long. The scale is available in 45cm and 55cm lengths.
Body Caliper with Curved Blade
This lightweight precision body caliper is used for measuring body parts. The rigid leg that slips under the patient is 1.8" thick and 11" long. The scale is available in 45cm and 55cm lengths.
