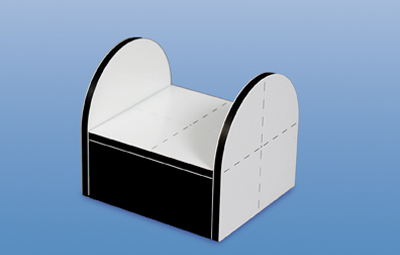

Model LAD-4

Laser Alignment Device

The Model LAD-4 is an improved CNMC designer Laser Alignment Device for the test and alignment of isocenter beams.  It allows for adjustments to be made by one person.  One set-up permits alignment of side, overhead and sagittal lasers and it is usable on dot or line lasers.  The materials for the LAD-4 have been chosen for improved ruggedness.  It is precision made of acrylic.  White surfaces are laminated and the lines are precision engraved, eliminating paint chippings and jagged lines associated with other designs.

The LAD-4 measures 5.1cm tall, 5.1cm wide and 5.7cm long (2" x 2" x 2.25") and weighs 95 grams.
